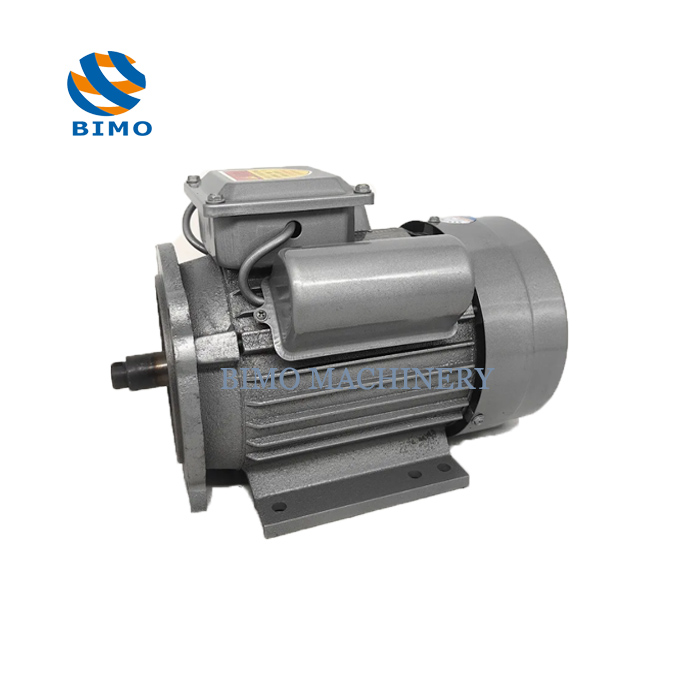

Factory Price 100% Copper Core 220V B3 B5 B35 AC Single Phase Iron Shell Motor Induction Motor
1, YC Series Single Phase Capacitor Start Asynchronous Motor is suitable for air compressor, pump and other equipment of high start torque.
2, The series motor features by high start torque, excellent running performance, little shape, light weight, low noise and easy maintenance.
3, YL series single-phase dual-capacitor asynchronous motor is designed and manufactured in according with national standard, newly developed by our company with low noise, compact construction, light weight, easy maintenance etc.
4, These motors are widely used on air compressors, pumps, fans, refrigerator, medical instruments, small-size machine etc. especially for occasion where only single-phase power supply is available
| Model | Power | Current | Power Factor | Eff | Speed | | | |
| (A) | (cos垄) | (%) | (r/min) | locked torque | locked current | Tmax/ |
| | | | | Rated torque | Rated current | Tn |
| Hp | kW | | | | | Tst/Tn | Ist/In | |
| YC7112 | 1/4 | 0.18 | 1.89 | 0.72 | 60 | 2800 | 3 | 7 | 1.8 |
| YC7122 | 1/3 | 0.25 | 2.4 | 0.74 | 64 | 2800 | 3 | 7 | 1.8 |
| YC8012 | 1/2 | 0.37 | 3.4 | 0.77 | 65 | 2800 | 2.8 | 6.5 | 1.8 |
| YC8022 | 3/4 | 0.55 | 4.7 | 0.79 | 68 | 2800 | 2.8 | 6.5 | 1.8 |
| YC90S-2 | 1 | 0.75 | 6.1 | 0.8 | 70 | 2800 | 3 | 6.5 | 1.8 |
| YC90L-2 | 1.5 | 1.1 | 8.7 | 0.8 | 72 | 2800 | 2.5 | 7 | 1.8 |
| YC90L-2 | 2 | 1.5 | 11.4 | 0.81 | 74 | 2800 | 2.5 | 7 | 1.8 |
| YC100L-2 | 3 | 2.2 | 16.5 | 0.81 | 75 | 2800 | 2.2 | 7 | 1.8 |
| YC100L1-2 | 4 | 3 | 21.88 | 0.82 | 76 | 2800 | 2.2 | 6.8 | 1.8 |
| YC100L-2 | 5 | 3.7 | 26.64 | 0.82 | 77 | 2800 | 2.2 | 6.4 | 1.8 |
| YC112M-2 | 4 | 3 | 21.4 | 0.82 | 76 | 2800 | 2.2 | 7 | 1.8 |
| YC7114 | 1/6 | 0.12 | 1.88 | 0.58 | 50 | 1400 | 3 | 9 | 1.8 |
| YC7124 | 1/4 | 0.18 | 2.49 | 0.62 | 53 | 1400 | 2.8 | 7 | 1.8 |
| YC8014 | 1/3 | 0.25 | 3.11 | 0.63 | 58 | 1400 | 2.8 | 6 | 1.8 |
| YC8024 | 1/2 | 0.37 | 4.24 | 0.64 | 62 | 1400 | 2.5 | 6 | 1.8 |
| YC90S-4 | 3/4 | 0.55 | 5.5 | 0.69 | 66 | 1400 | 2.5 | 6 | 1.8 |
| YC90L-4 | 1 | 0.75 | 6.9 | 0.73 | 68 | 1400 | 2.5 | 6.5 | 1.8 |
| YC90L-4 | 1.5 | 1.1 | 9.6 | 0.74 | 71 | 1400 | 2.5 | 6.5 | 1.8 |
| YC100L-4 | 2 | 1.5 | 12.5 | 0.75 | 73 | 1400 | 2.5 | 6.5 | 1.8 |
| YC112M-4 | 3 | 2.2 | 17.8 | 0.76 | 74 | 1400 | 2.2 | 6.5 | 1.8 |
| YC132S-4 | 4 | 3 | 23.6 | 0.77 | 75 | 1400 | 2.1 | 6.5 | 1.8 |
| YC132S-4 | 5 | 3.7 | 28 | 0.79 | 76 | 1400 | 2.1 | 6.5 | 1.8 |
| YC132M-4 | 7.5 | 5.5 | 32.5 | 0.95 | 81 | 1400 | 2.1 | 6.5 | 1.8 |
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.
Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.
Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.
Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.
Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
