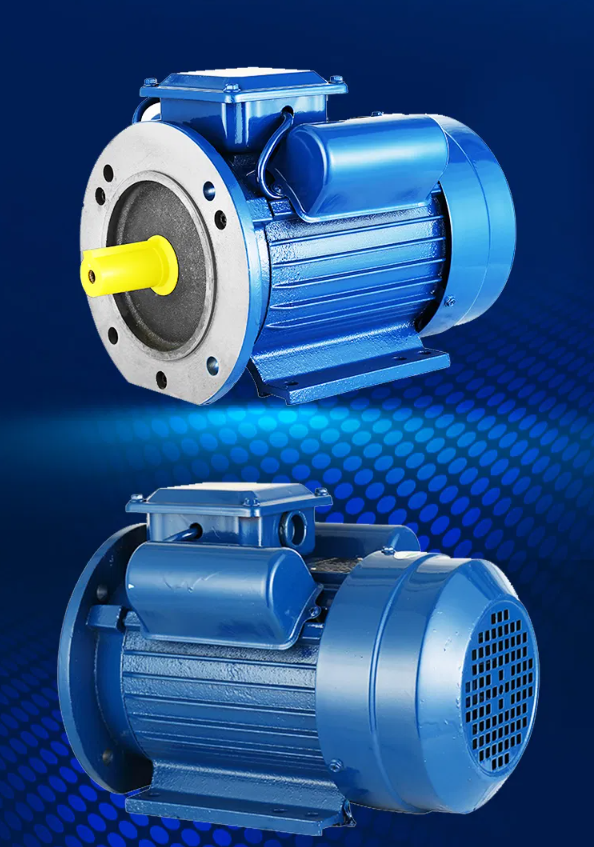

2.2HP 3HP Single Phase Motor 2800rpm Cast Iron Casing Capacitor Start Motor CSR

Brand Name : BM

Model Number : YC100L-2

Certification : CE

Place of Origin : China

MOQ : 10PCS

Price : USD35-USD120

Payment Terms : T/T

Supply Ability : 10000pcs per month

Delivery Time : 25 days

Packaging Details : Cartons/Pallets

Name : cast Iron motor

Protect Feature : IP54

Frequency : 50/60Hz

Efficiency : IE2

Voltage : 115/230,220V

Power : 0.18KW-7.5KW

Contact Now

Chinese Single Phase 2800rpm Cast Iron Casing Capacitor Start YC 50Hz 60Hz B5 B3 B35 B14 IP55 2.2HP 3HP Single Phase Motor

1, YC Series Single Phase Capacitor Start Asynchronous Motor is suitable for air compressor, pump and other equipment of high start torque.


2, The series motor features by high start torque, excellent running performance, little shape, light weight, low noise and easy maintenance.

Model Power Current Power Factor Eff Speed
(A) (cos垄) (%) (r/min) locked torque locked current Tmax/
Rated torque Rated current Tn
Hp kW Tst/Tn Ist/In
YC7112 1/4 0.18 1.89 0.72 60 2800 3 7 1.8
YC7122 1/3 0.25 2.4 0.74 64 2800 3 7 1.8
YC8012 1/2 0.37 3.4 0.77 65 2800 2.8 6.5 1.8
YC8022 3/4 0.55 4.7 0.79 68 2800 2.8 6.5 1.8
YC90S-2 1 0.75 6.1 0.8 70 2800 3 6.5 1.8
YC90L-2 1.5 1.1 8.7 0.8 72 2800 2.5 7 1.8
YC90L-2 2 1.5 11.4 0.81 74 2800 2.5 7 1.8
YC100L-2 3 2.2 16.5 0.81 75 2800 2.2 7 1.8
YC100L1-2 4 3 21.88 0.82 76 2800 2.2 6.8 1.8
YC100L-2 5 3.7 26.64 0.82 77 2800 2.2 6.4 1.8
YC112M-2 4 3 21.4 0.82 76 2800 2.2 7 1.8
YC7114 1/6 0.12 1.88 0.58 50 1400 3 9 1.8
YC7124 1/4 0.18 2.49 0.62 53 1400 2.8 7 1.8
YC8014 1/3 0.25 3.11 0.63 58 1400 2.8 6 1.8
YC8024 1/2 0.37 4.24 0.64 62 1400 2.5 6 1.8
YC90S-4 3/4 0.55 5.5 0.69 66 1400 2.5 6 1.8
YC90L-4 1 0.75 6.9 0.73 68 1400 2.5 6.5 1.8
YC90L-4 1.5 1.1 9.6 0.74 71 1400 2.5 6.5 1.8
YC100L-4 2 1.5 12.5 0.75 73 1400 2.5 6.5 1.8
YC112M-4 3 2.2 17.8 0.76 74 1400 2.2 6.5 1.8
YC132S-4 4 3 23.6 0.77 75 1400 2.1 6.5 1.8
YC132S-4 5 3.7 28 0.79 76 1400 2.1 6.5 1.8
YC132M-4 7.5 5.5 32.5 0.95 81 1400 2.1 6.5 1.8

2.2HP 3HP Single Phase Motor 2800rpm Cast Iron Casing Capacitor Start Motor CSR

2.2HP 3HP Single Phase Motor 2800rpm Cast Iron Casing Capacitor Start Motor CSR

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
