YC100L-2 3.7KW 5hp Single Phase Motor B5 Cast Iron Single Phase Electric Motor

Product Categories
Bimo Machinery Co.,Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

YC100L-2 3.7KW 5hp Single Phase Motor B5 Cast Iron Single Phase Electric Motor

Brand Name : BM

Model Number : YC100L-2

Certification : CE

Place of Origin : China

MOQ : 10PCS

Price : USD35-USD120

Payment Terms : T/T

Supply Ability : 10000pcs per month

Delivery Time : 25 days

Packaging Details : Cartons/Pallets

Name : 5hp single phase motor

Protect Feature : IP54

Frequency : 50/60Hz

Efficiency : IE2

Voltage : 115/230,220V

Power : 3.7kw

Contact Now

YC100L-2 3.7KW 5hp B5 Cast Iron Single Phase Electric Motor

1, YC Series Single Phase Capacitor Start Asynchronous Motor is suitable for air compressor, pump and other equipment of high start torque.


2, The series motor features by high start torque, excellent running performance, little shape, light weight, low noise and easy maintenance.

Model Power Current Power Factor Eff Speed
(A) (cos垄) (%) (r/min) locked torque locked current Tmax/
Rated torque Rated current Tn
Hp kW Tst/Tn Ist/In
YC7112 1/4 0.18 1.89 0.72 60 2800 3 7 1.8
YC7122 1/3 0.25 2.4 0.74 64 2800 3 7 1.8
YC8012 1/2 0.37 3.4 0.77 65 2800 2.8 6.5 1.8
YC8022 3/4 0.55 4.7 0.79 68 2800 2.8 6.5 1.8
YC90S-2 1 0.75 6.1 0.8 70 2800 3 6.5 1.8
YC90L-2 1.5 1.1 8.7 0.8 72 2800 2.5 7 1.8
YC90L-2 2 1.5 11.4 0.81 74 2800 2.5 7 1.8
YC100L-2 3 2.2 16.5 0.81 75 2800 2.2 7 1.8
YC100L1-2 4 3 21.88 0.82 76 2800 2.2 6.8 1.8
YC100L-2 5 3.7 26.64 0.82 77 2800 2.2 6.4 1.8
YC112M-2 4 3 21.4 0.82 76 2800 2.2 7 1.8
YC7114 1/6 0.12 1.88 0.58 50 1400 3 9 1.8
YC7124 1/4 0.18 2.49 0.62 53 1400 2.8 7 1.8
YC8014 1/3 0.25 3.11 0.63 58 1400 2.8 6 1.8
YC8024 1/2 0.37 4.24 0.64 62 1400 2.5 6 1.8
YC90S-4 3/4 0.55 5.5 0.69 66 1400 2.5 6 1.8
YC90L-4 1 0.75 6.9 0.73 68 1400 2.5 6.5 1.8
YC90L-4 1.5 1.1 9.6 0.74 71 1400 2.5 6.5 1.8
YC100L-4 2 1.5 12.5 0.75 73 1400 2.5 6.5 1.8
YC112M-4 3 2.2 17.8 0.76 74 1400 2.2 6.5 1.8
YC132S-4 4 3 23.6 0.77 75 1400 2.1 6.5 1.8
YC132S-4 5 3.7 28 0.79 76 1400 2.1 6.5 1.8
YC132M-4 7.5 5.5 32.5 0.95 81 1400 2.1 6.5 1.8

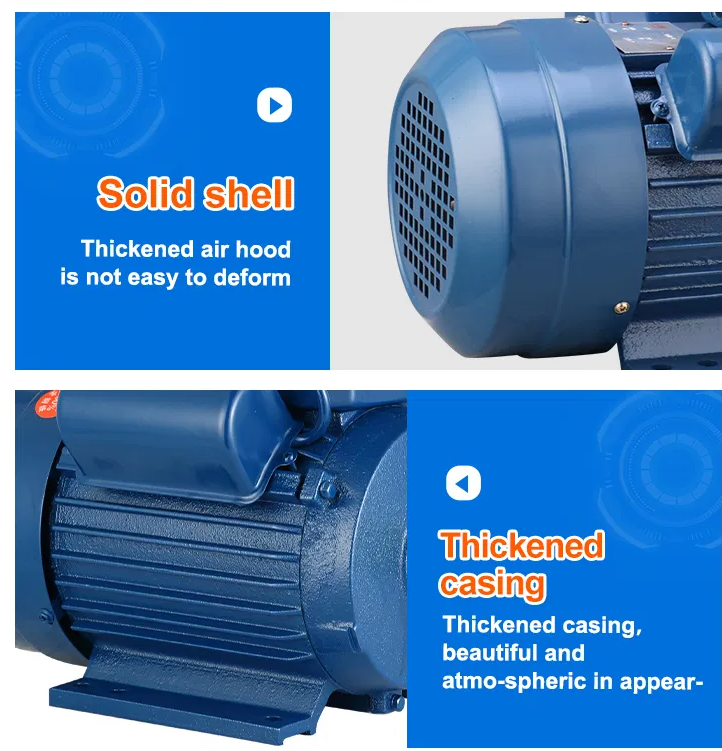

YC100L-2 3.7KW 5hp Single Phase Motor B5 Cast Iron Single Phase Electric MotorYC100L-2 3.7KW 5hp Single Phase Motor B5 Cast Iron Single Phase Electric Motor

YC100L-2 3.7KW 5hp Single Phase Motor B5 Cast Iron Single Phase Electric Motor

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
